AFM1000 $1495.00
Part # 6000

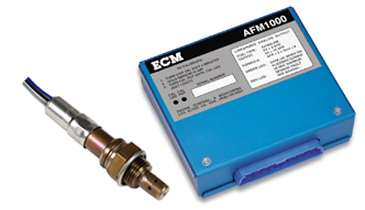

The AFM1000 Air-Fuel Ratio Monitor is a tool for the calibration, monitoring, and closed-loop operation of fuel-injection and carbureted engines. Exceedingly simple to hook-up and operate, the AFM1000 comes complete with sensor, harness, module, operator's manual, and an exhaust boss and plug. The 0 to 5V analog output is linearized in AFR and can be connected to any data acquisition or engine control system. The AFM1000 provides unmatched measurement range, accuracy, and speed-of-response in a compact, lightweight package and is an essential tool for any in-vehicle powertrain development program.



AFM1000 Products

18mm Bunge


18mm Bunge (Part # 5162) $5.60

18 mm, SS, weld in fitting to be mounted into the exhaust pipe.



18mm Plug


18mm Plug (Part # 5127) $6.50

18 mm, SS, plug for the 5162 bunge.



AFM1000 Analyzer

AFM1000 analyzer (Part # 6000) , $1495

The best professional Air-Fuel Ratio Monitor with harness and laboratory UEGO Sensor. The AFM1000 is used by professionals in applications where the most accurate, true wide-range AFR is required. Includes module, harness, laboratory UEGO sensor, fittings and instructions.



AFM1000 sensor


AFM1000 sensor (Part # 5101) , $400

UEGO sensor for AFM1000, laboratory grade, the best AFR sensor available to provide accurate AFR data.




AFM1000 harness


AFM1000 harness:

3ft (Part # 5001) $130

10ft (Part # 5002) $160

20ft (Part # 5003) $195




Digital Display for AFM1000


Digital Display for AFM1000, 4" High LED (Part # 6401), $1248.75

Digital Display for AFM1000. 0.56-inch Red LED, 8.0 to 18.0 AFR, 12 VDC power.
Dimensions: 4” W x 3 ½” L x 1” H.



Tailpipe Probe


SS dual path tailpipe probe


SS dual path tailpipe probe (automotive) (Part # A50002-A) $695

External SS probe sampling system that draws exhaust from the tailpipe of a car, truck through a flexible probe placed in the tailpipe. The probe is mounted on a stand that can be easily adjusted to the vehicle's tailpipe height. A wide-range AFR sensor is located in the probe and measures the AFR. The AFR sensor is removable for optional mounting directly on the vehicle's exhaust system. A compact pump mounted at the probe's exit draws exhaust through the probe and past the sensor. For long, trouble-free operation, the pump is powered by shop air with out any moving parts.




SS dual path tailpipe probe


SS dual path tailpipe probe (motorcycle) (Part # A50002-C) $795

External SS probe sampling system that draws exhaust from the tailpipe of a car, truck, motorcycle, snowmobile, or ATV through a flexible probe placed in the tailpipe. The probe is mounted on a stand that can be easily adjusted to the vehicle's tailpipe height. A wide-range AFR sensor is located in the probe and measures the AFR. The AFR sensor is removable for optional mounting directly on the vehicle's exhaust system. A compact pump mounted at the probe's exit draws exhaust through the probe and past the sensor. For long, trouble-free operation, the pump is powered by shop air with out any moving parts.
